Pickup regions
Saint-Petersburg
OKPD code
28.22.18.314Loading and unloading manipulators
VAT
VAT 20%
Brand name
HOWO
Unit of measurement
Piece
Condition
New
Year of release
2023
Additional features
Chassis Model
ZZ5257JSQN584GE1
Curb weight (after installing the crane),
8200kg
Maximum speed,
84km/h
Overall dimensions (after installing the crane)
11820x2496x3500mm
Overall dimensions of the on-board platform
8000x2300x600 3mm bottom, corrugated sheet; 1.5mm side, corrugated sheet (transverse)mm
Number of passengers in the cabin
2dude
Wheelbase
5800+1350mm
Drive type/number of axles
6x4
Technical characteristics of tires
315/80R22.5
Engine
MC07.33-50,330hp，Euro5, Silicone oil fan , Engine Protection panel, Cold Zone package
Engine power
243kW
Engine power
330L. S.
Transmission
HW13709XST
Steering control
BOSCH hydraulic with pneumatic booster
The cabin
TX-D single bed, with air conditioning, medium metal bumper Color - gray
Fuel tank
300l
The braking system
ABS
Rear axle
MCY13BGS (4.63)
Front axle
VPD71DS
Pendant
Reinforced multi-leaf springs front and rear
Other
Emergency call system, front and bottom protection, automatic adjustment lever, brake wear alarm, 2 kg fire extinguisher. Reverse gear beep

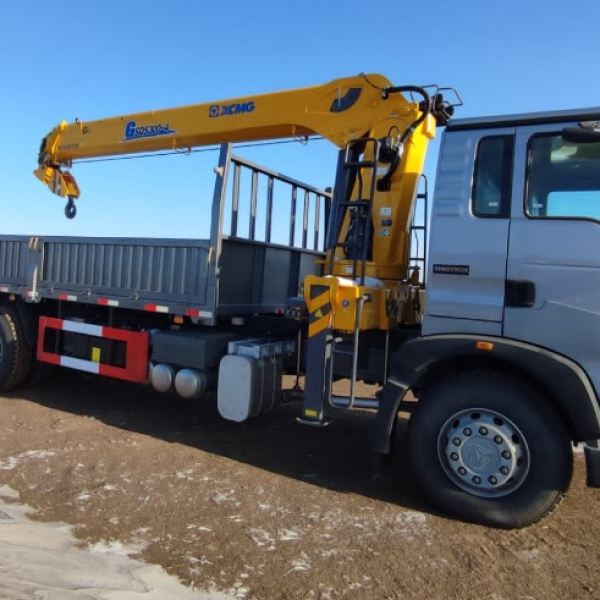

CMU Model
SQS300-4
Load capacity
12000kg
Load capacity at maximum reach
13000kg
Load moment, Tm
30
Recommended power
49kW
Maximum flow in the hydraulic system, l/min
63+40
Nominal operating pressure in the hydraulic system
26MPa
Oil tank capacity
160l
Crane weight
3315kg
Installation space
1200mm
Angle of rotation
360
